Zero XYZ

This page is for generating the code to zero out X, Y, and Z on any given touch plate

BETA: Please note this is currently in beta

Position your endmill as it shows in the picture. Keep it about .5" from the corner you're measuring. For instance, in the lower right, right start option, position the endmill .5" from what is the upper right hand corner of your touch plate.

These are general beginning and end positions not accurate locations.

Endmill End Endmill Start Stock Touch Plate

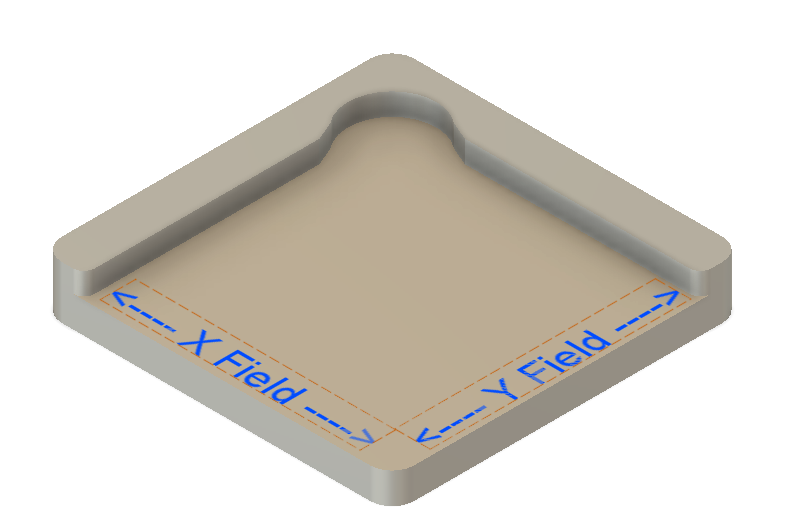

Please measure the field of your touchplate for the X and Y thickness.

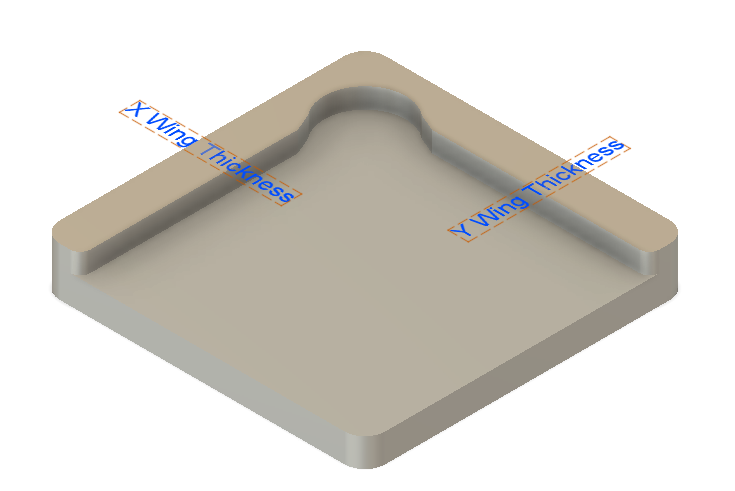

Make sure you're measuring the correct area of your touchplate. Double check above if you're supposed to be measuring the field or the wings of your your touchplate.
You want this to be slow, from 25.4mm to 127mm per min is reasonable. Keep in mind this is per minute, not second.
You really want this to be from 12.7mm to 25.4mm away.
